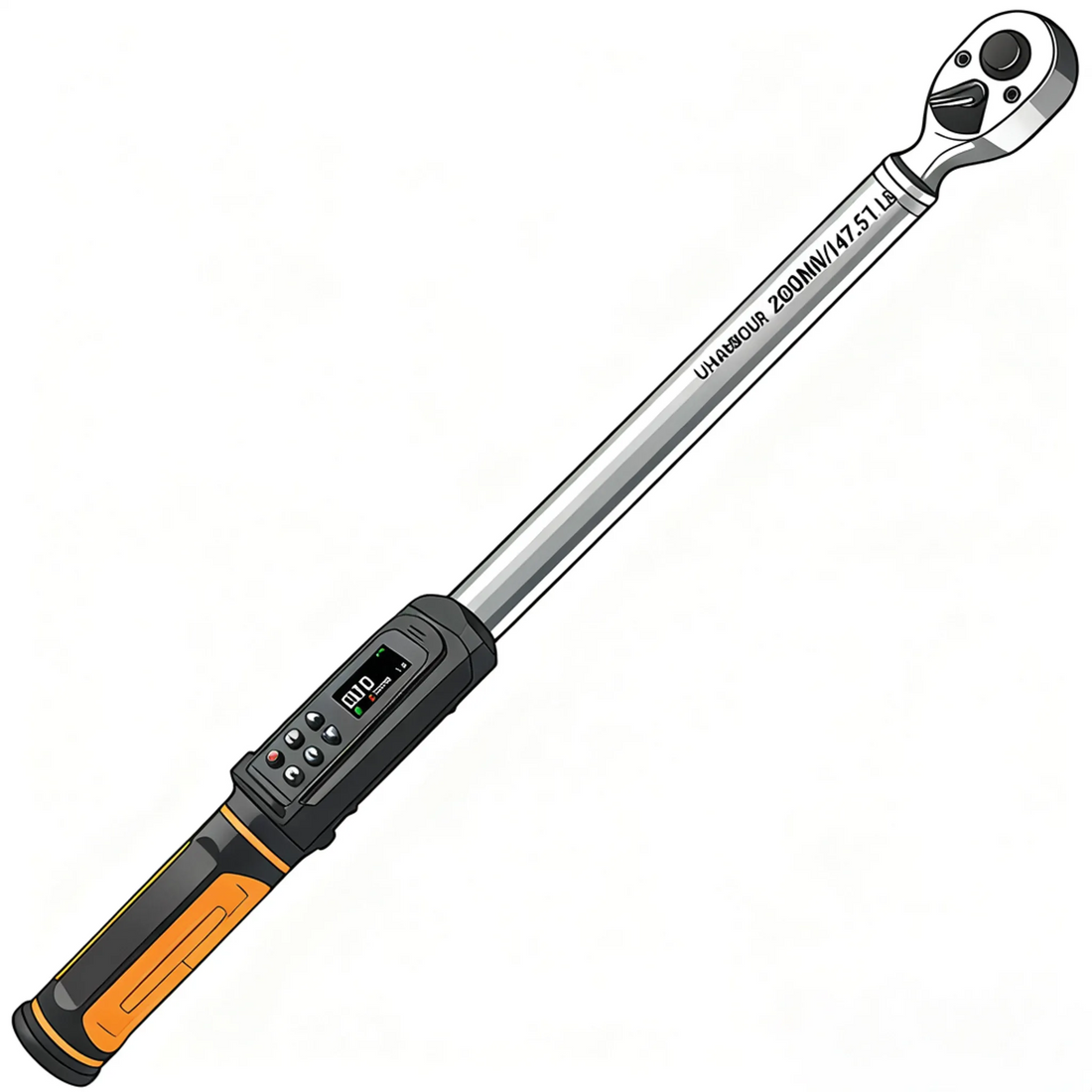

How Digital Torque Wrenches Work: The Science of Precision Fastening
In the world of precision mechanics, the difference between success and failure often comes down to tiny measurements. While click-type torque wrenches have served industry well for decades, digital torque wrenches represent a quantum leap in accuracy, control, and data intelligence. But how exactly do these sophisticated tools transform physical force into precise digital readings?
From Force to Figure: The Core Components
At the heart of every digital torque wrench lies a sophisticated system of components working in perfect harmony:
1. Strain Gauge Sensor: The tool's secret weapon. This is a precisely engineered electrical sensor bonded to a specially designed internal beam or torsion rod. As force is applied, the beam minutely deflects (often by mere micrometers), causing the strain gauge to stretch or compress.
2. The Wheatstone Bridge Circuit: The strain gauge is part of this clever electrical circuit. The tiny physical deformation of the gauge changes its electrical resistance. This circuit is exquisitely sensitive to these minute resistance changes, converting them into a measurable electrical signal.
3. Microprocessor (The Brain): This signal is sent to an onboard computer. The microprocessor uses complex, pre-programmed algorithms to instantly interpret the signal, calculating the exact torque being applied based on the level of resistance change.
4. Digital Display (The Interface): The calculated torque value is shown in real-time on a high-resolution LCD or LED screen, often with options to display readings in Nm, lb-ft, lb-in, kg-m or kg-cm.
5. Alert System: Unlike a mechanical "click," a digital wrench provides multi-sensory alerts. Integrated LEDs (often tri-color: green/yellow/red), an audible buzzer, and sometimes even haptic vibration alert the user as they approach and reach the target torque.
The Workflow: A Millisecond-by-Millisecond Process
The entire process happens in near real-time:
1. Application of Force: The user applies force to the wrench handle.
2. Micro-Deflection: The internal beam deflects imperceptibly.
3. Signal Generation: The strain gauge's resistance changes, generating a proportional electrical signal.
4. Signal Processing: The microprocessor analyzes the signal, filters out "noise" (like sudden jerks), and performs calculations.
5. Output: The result is displayed numerically on the screen. The system simultaneously monitors this value against the preset target.
6. Alert & Data Logging: Upon reaching the preset value, the wrench triggers its alarms. Advanced models can also record and store the peak torque value achieved for quality control purposes.
Key Advantages Over Mechanical Wrenches
· Real-Time Visual Feedback: See the torque value increase live on the screen, allowing for smoother, more controlled tightening.
· Reduced Human Error: Eliminates the reliance on hearing or feeling a "click," which can be missed in noisy environments.
· Data Recording: Critical for quality assurance and traceability in industries like aerospace and automotive. Many models can store hundreds or thousands of readings.
· Multiple Units & Modes: Switch units instantly. Use Track Mode for live readings or Peak Mode to capture and hold the maximum torque value applied.
· Enhanced Accuracy: Typically offers accuracy within ±1%, superior to most mechanical wrenches.
Calibration: The Key to Trust
This precision isn't permanent. The complex relationship between the strain gauge's resistance and the calculated torque value must be regularly checked and adjusted against a known standard—a process called calibration. This ensures the tool's readings remain trustworthy over time and use.
Conclusion: Intelligence in Your Hands - Uharbour Delivers Excellence
A digital torque wrench is more than just a tool; it's a sophisticated measuring instrument. It replaces intuition with data, guesswork with certainty, and manual recording with automated traceability. By harnessing the principles of sensor technology and microprocessing, it provides a level of control and precision that was once impossible, making it an indispensable asset for any professional who cannot afford to guess.
